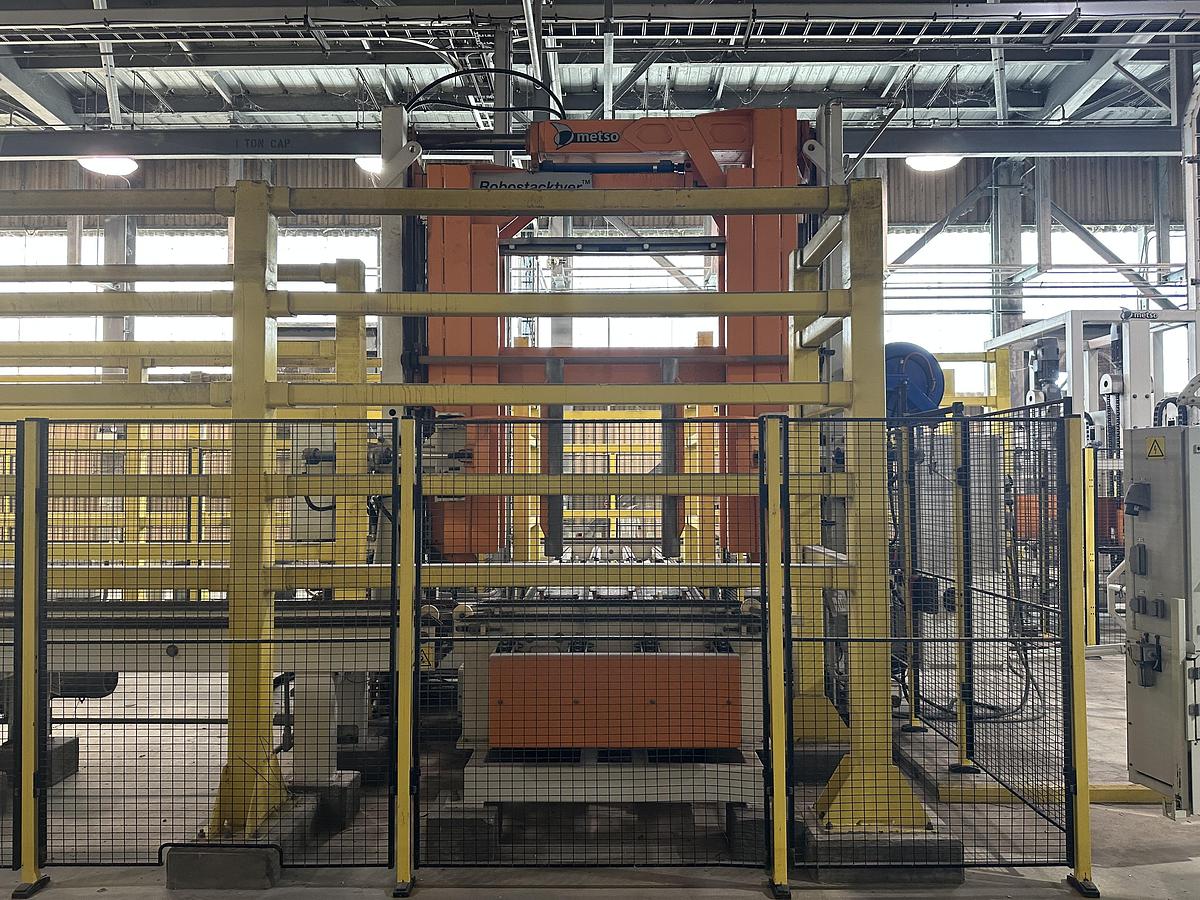

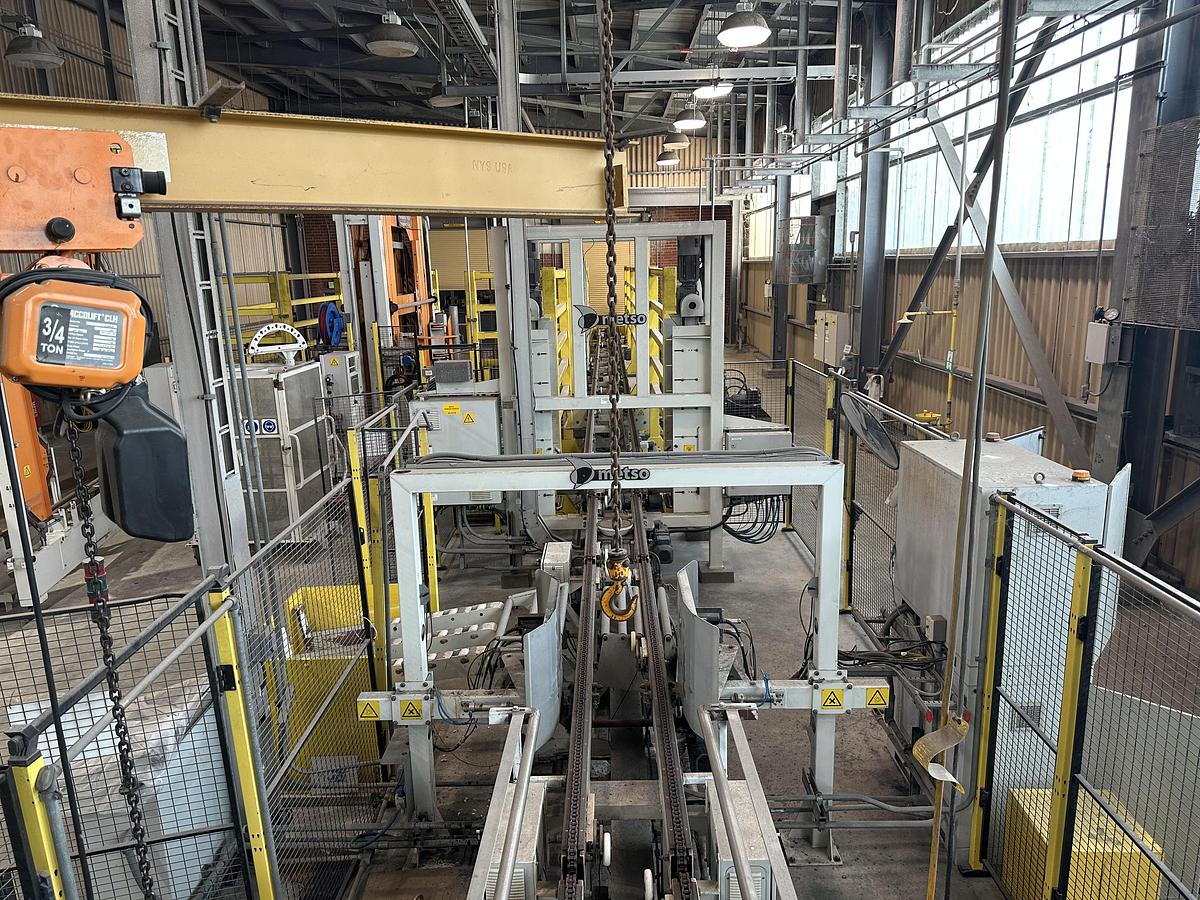

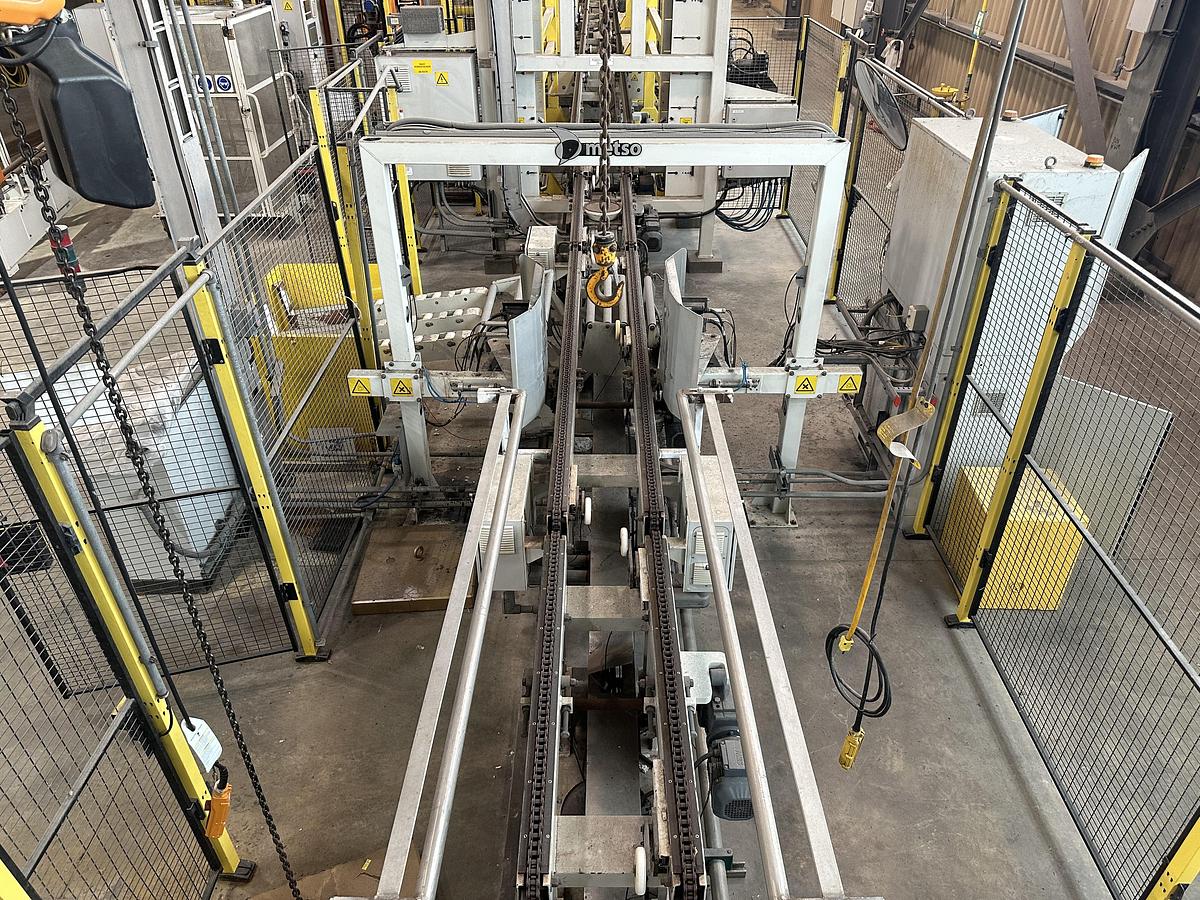

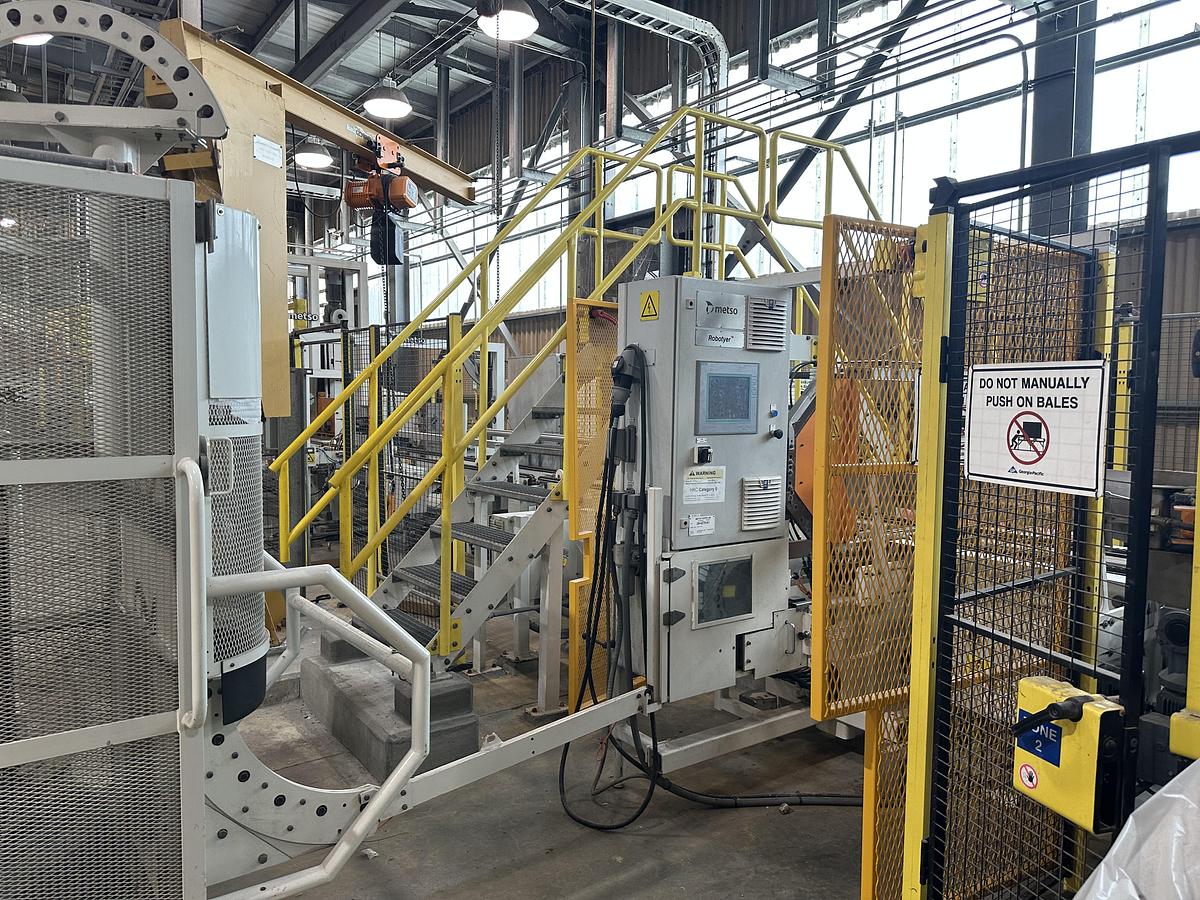

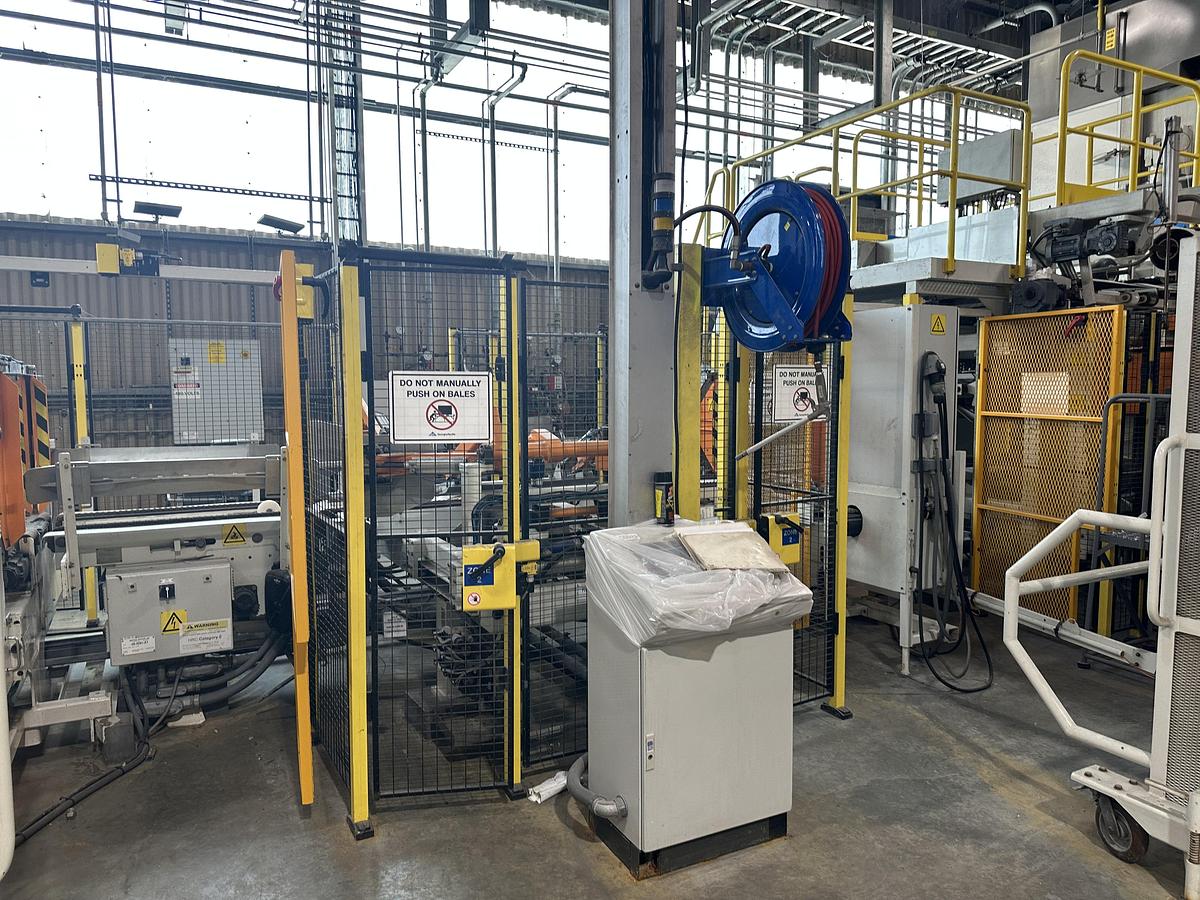

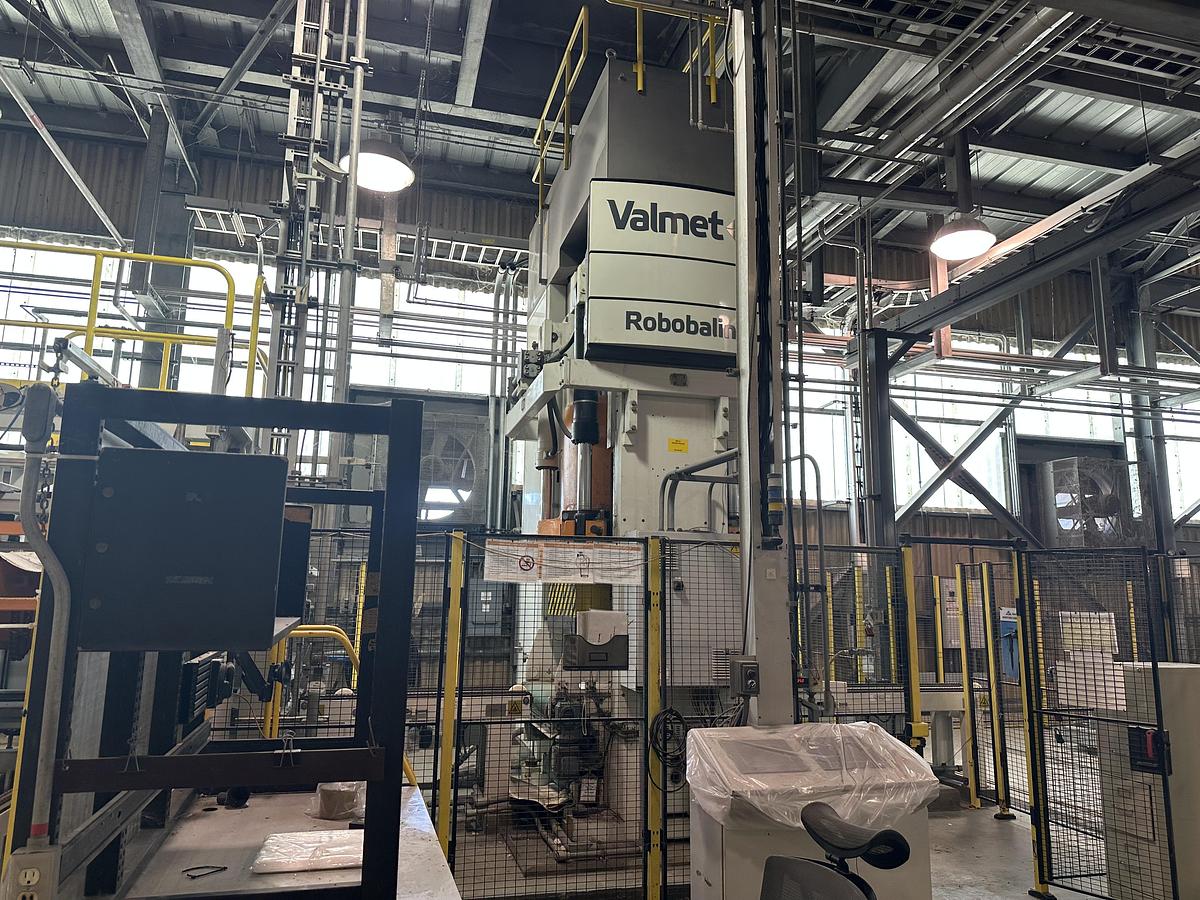

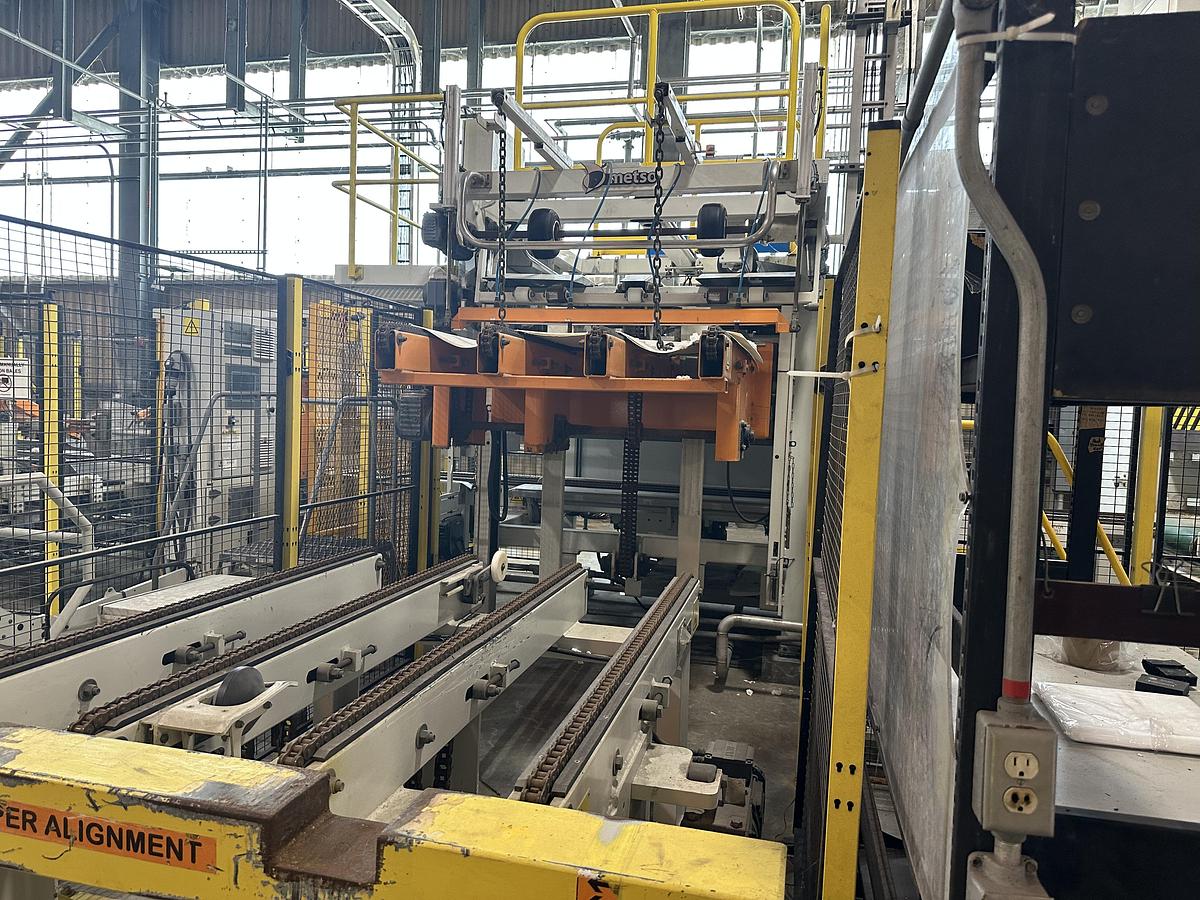

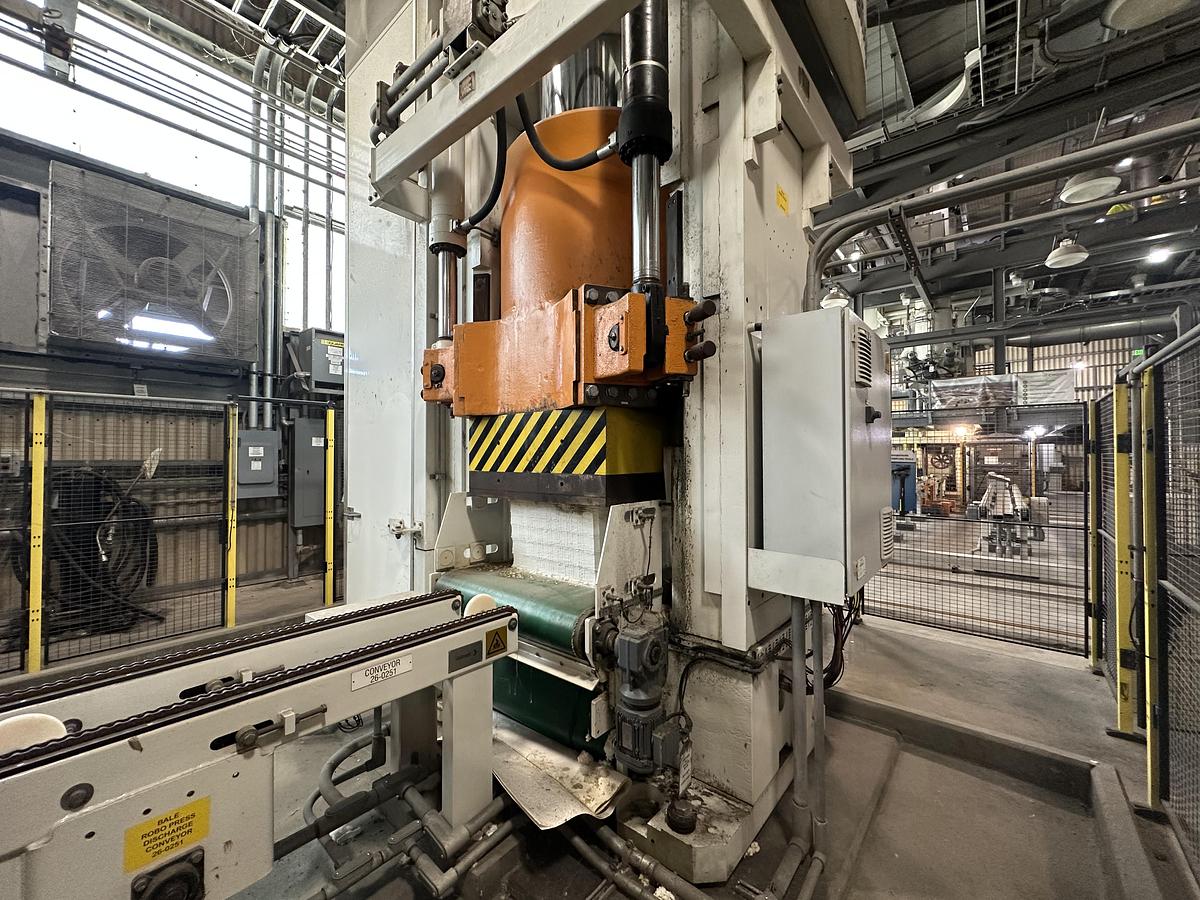

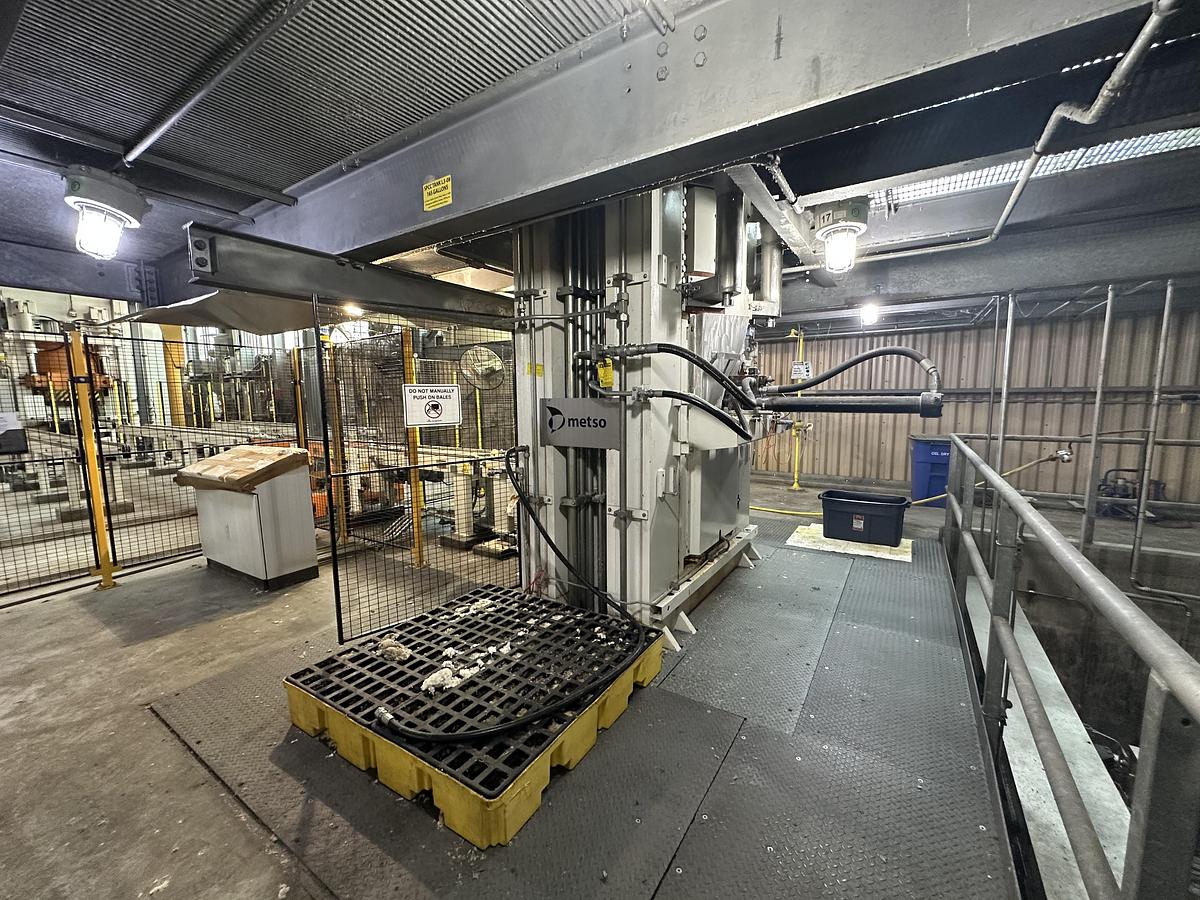

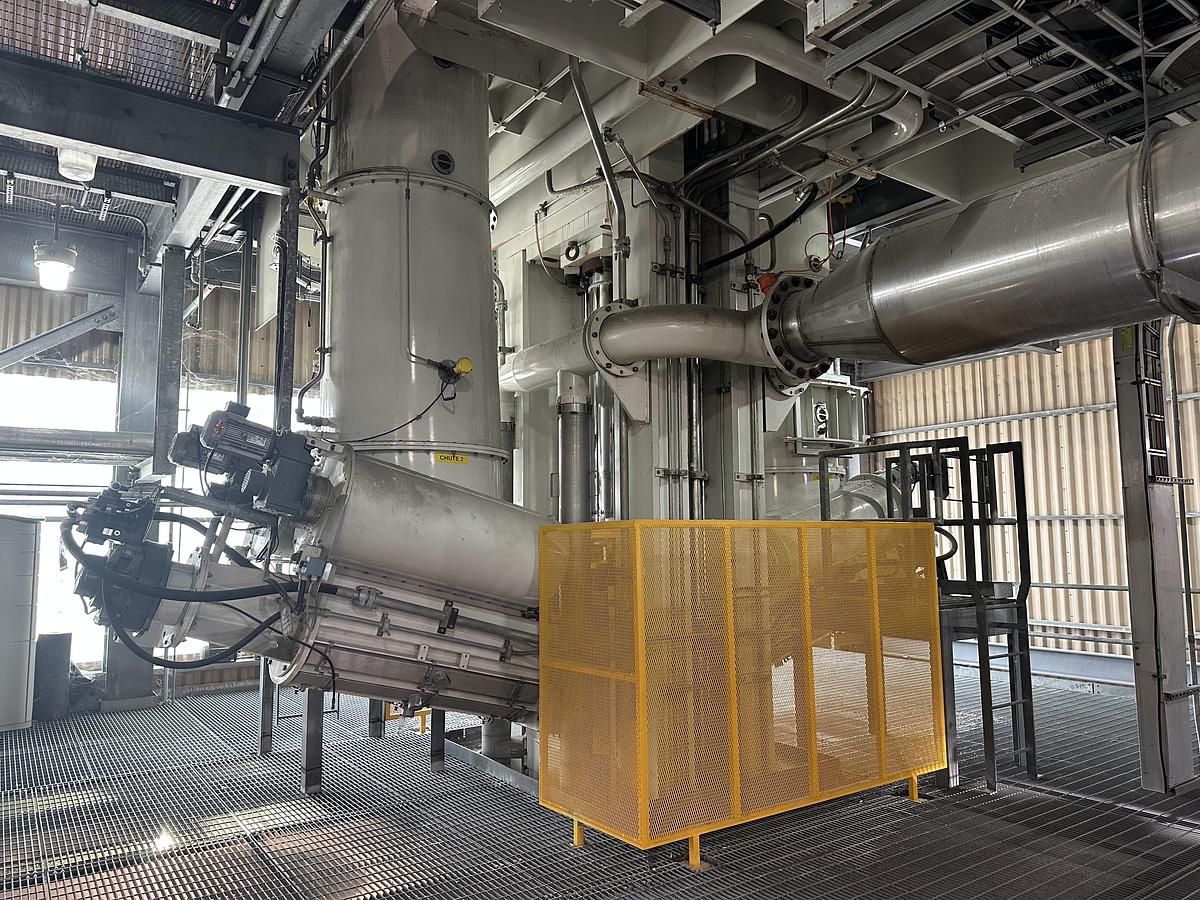

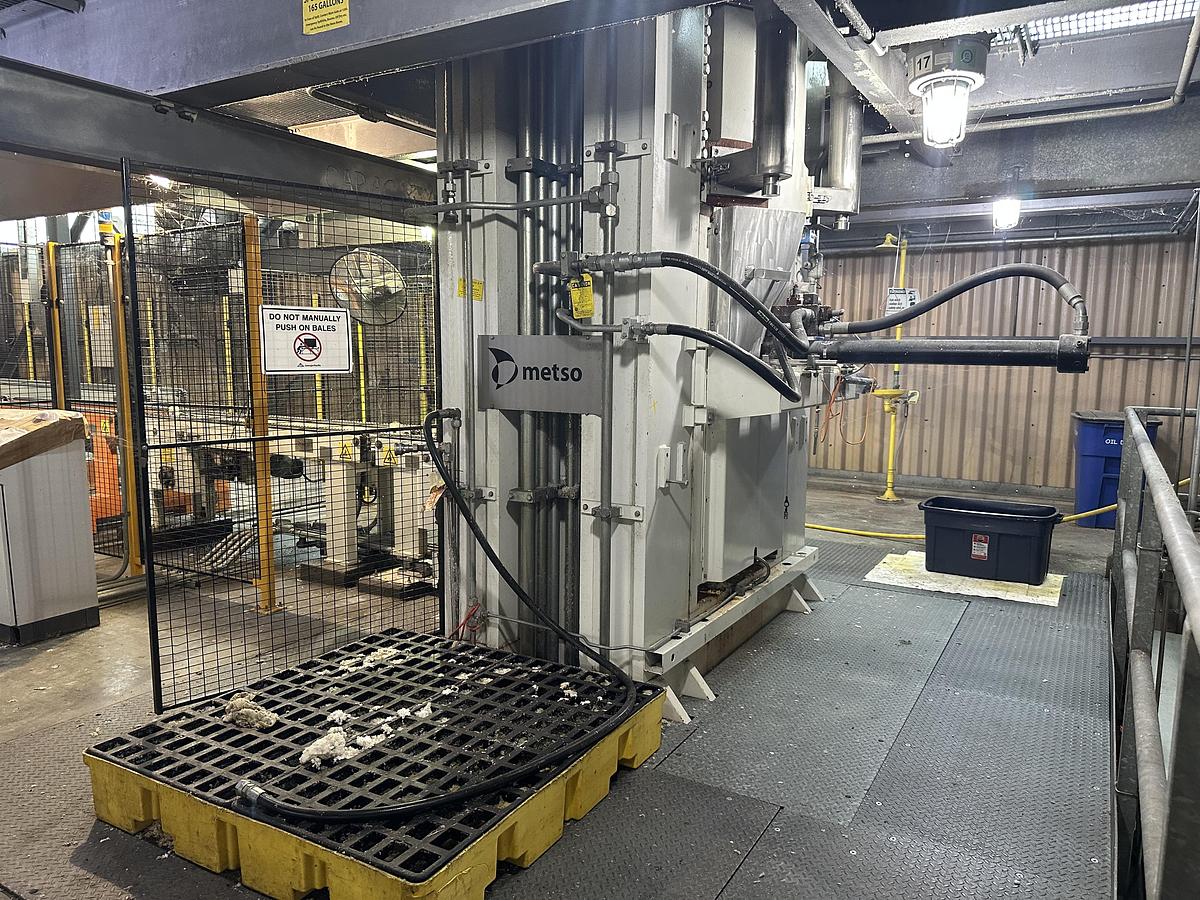

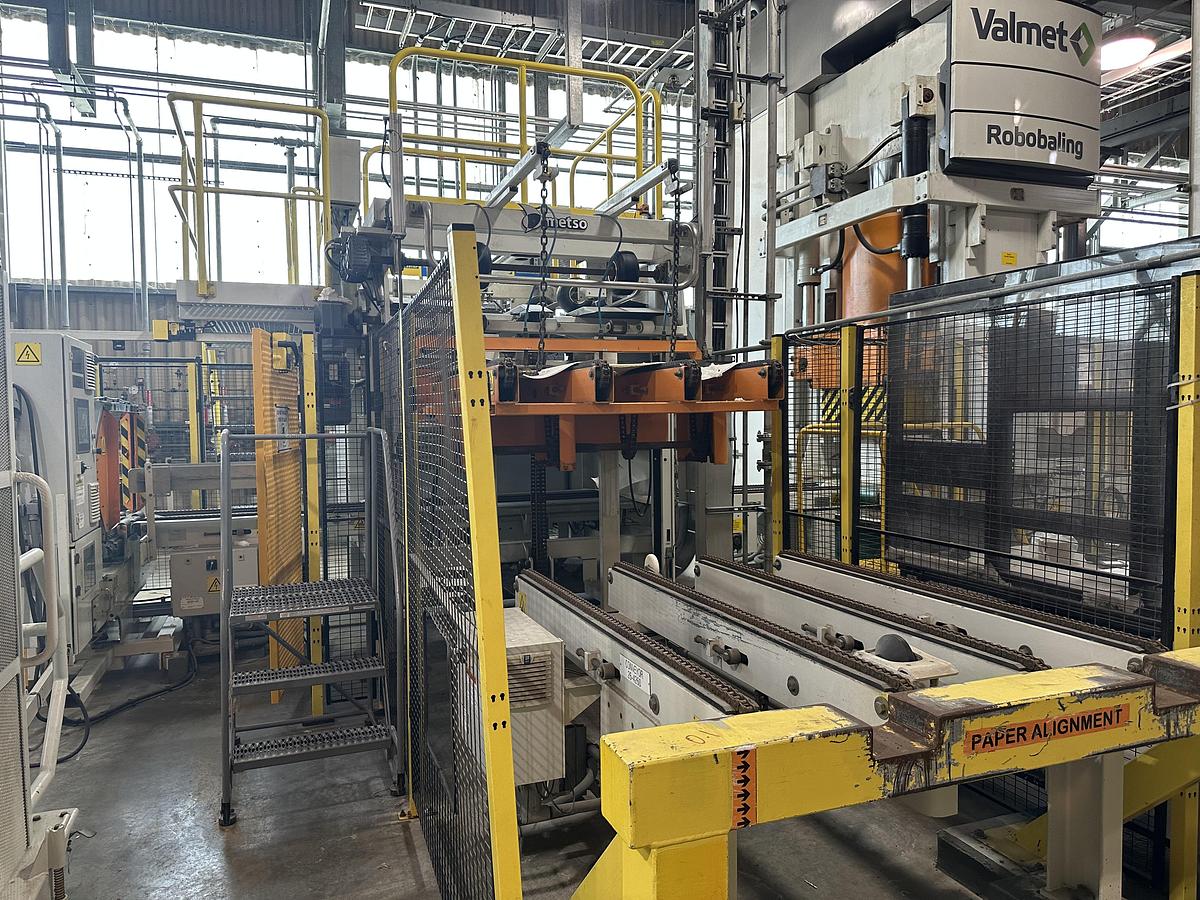

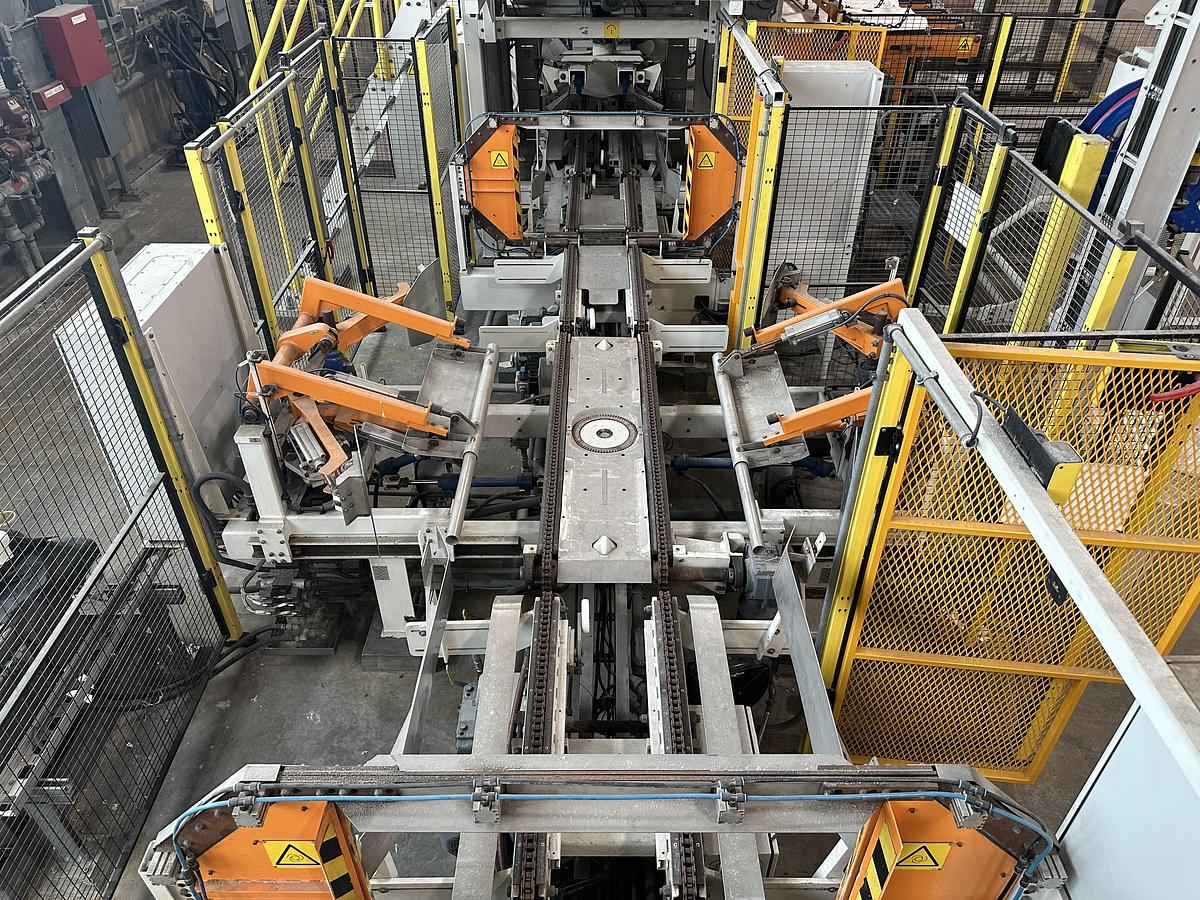

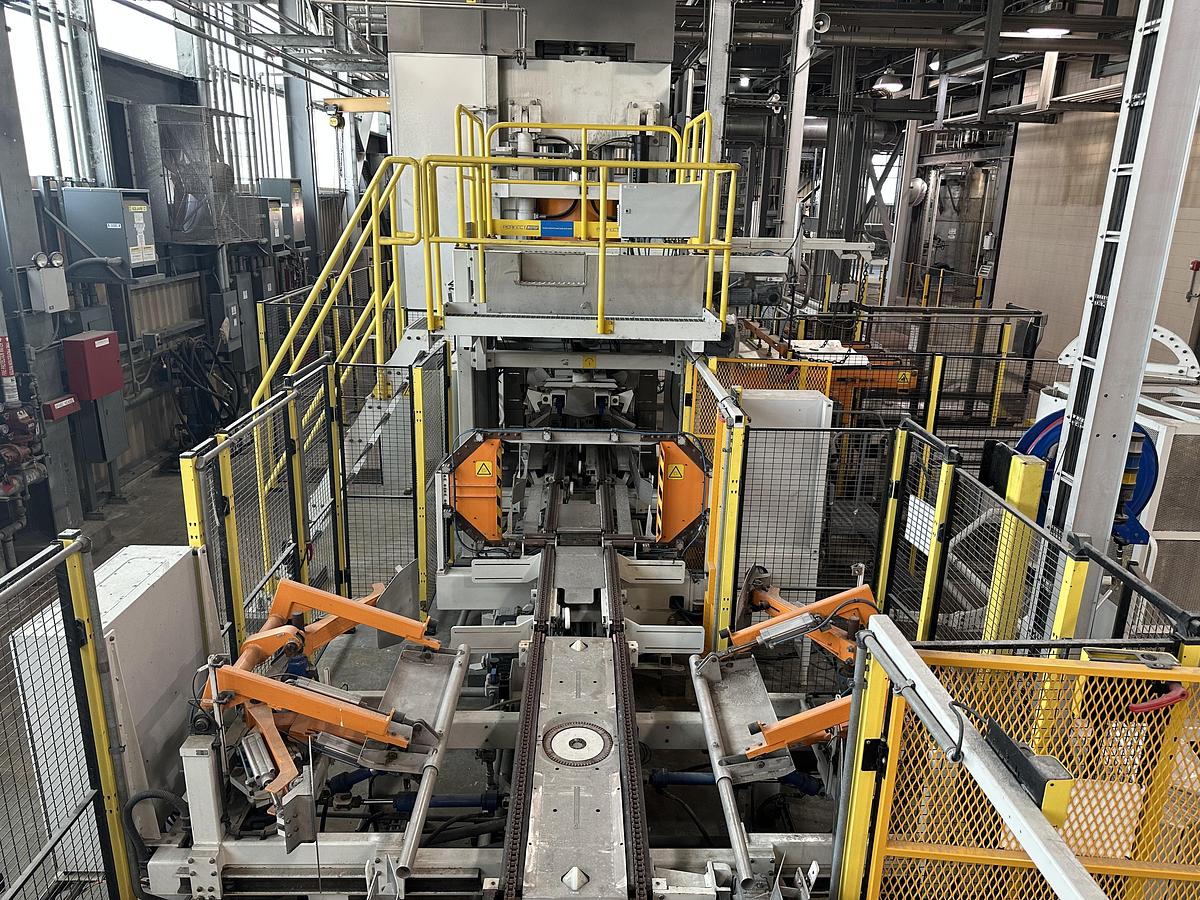

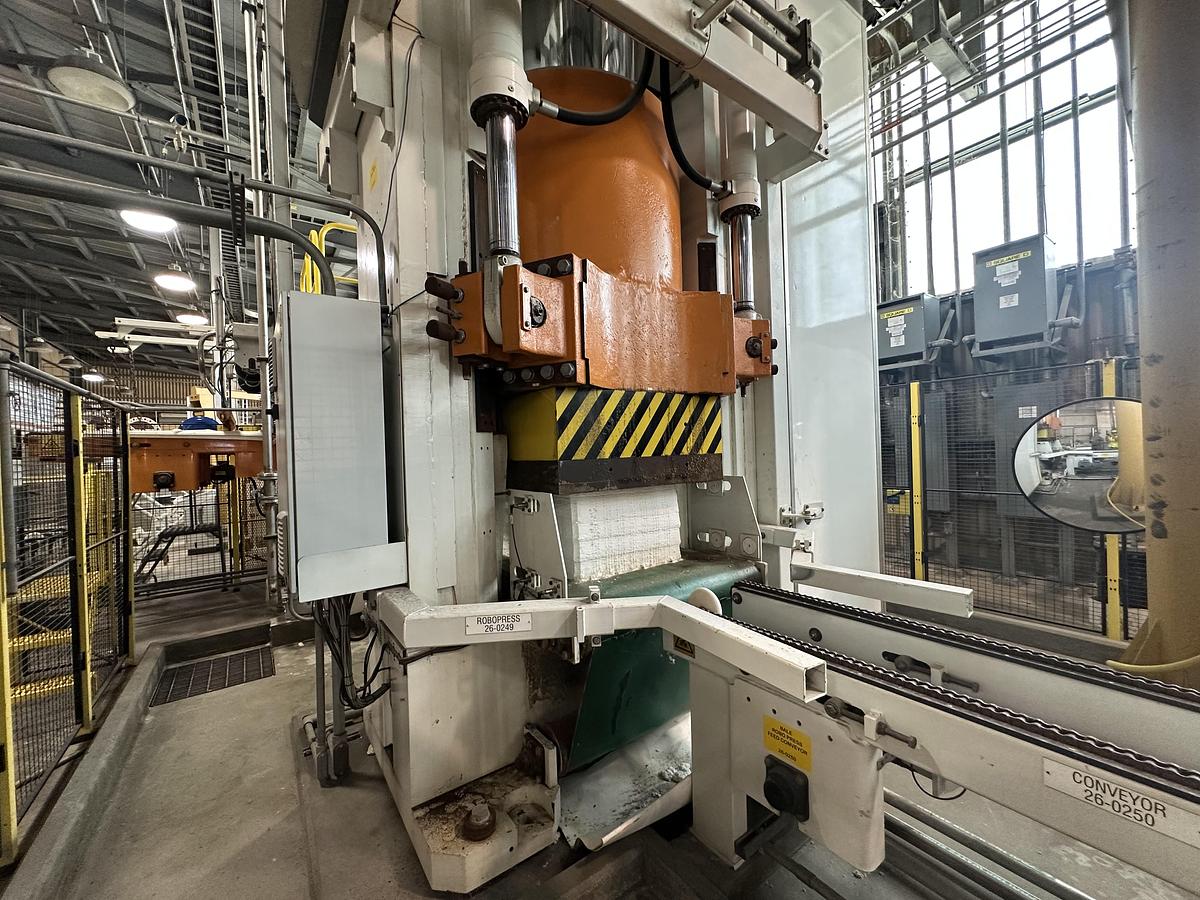

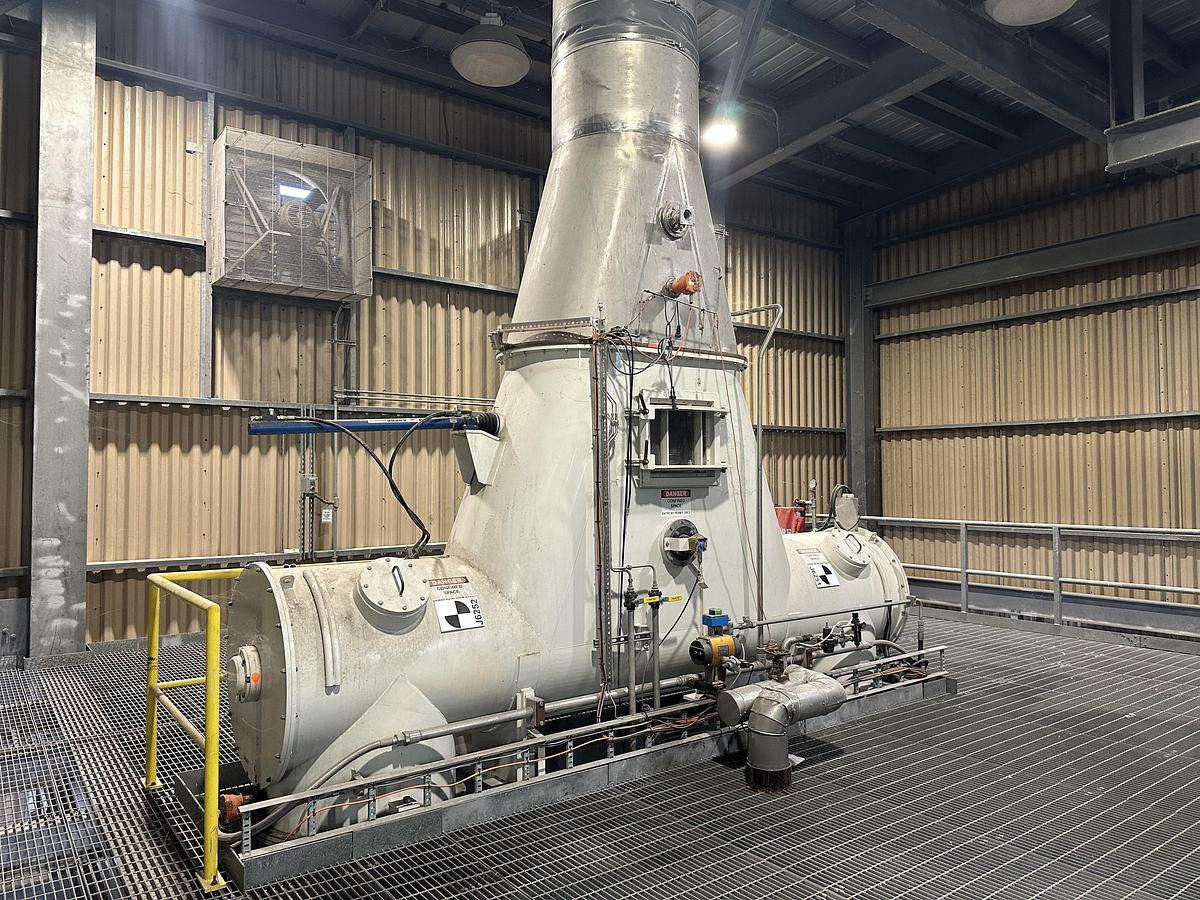

METSO Bale Forming & Bale Handling System With Slab Press #46898

Metso Bale Forming & Bale Handling System With Slab Press

Basic Design Data

Production

• 166 ADMT/D

Maximum capacity

• 240 ADMT/D

Raw material

• Process Bleached softwood
• kraft pulp

Dryness of pulp

• 87%

Nominal bale width

• 600 mm (23.6 inches)

Nominal bale length

• 880 mm (34.6 inches)

Nominal bale height

• 550 mm (21.7 inches)

Bale weight

• 175 kg

Maximum bale weight for components

• 333 kg

Nominal bale density

• 0.6 kg/dm3 (37.5 lb/ft3)

Slabs (leafs) per bale

• 5

Size of unit

• 2 stacks, each with
• 3-4 bales in height

Number of wires per unit

• Normally 6 (the number of wires is adjustable)

Wrapper sheet

• length 1450-1480 mm
• width 1250-1350 mm
